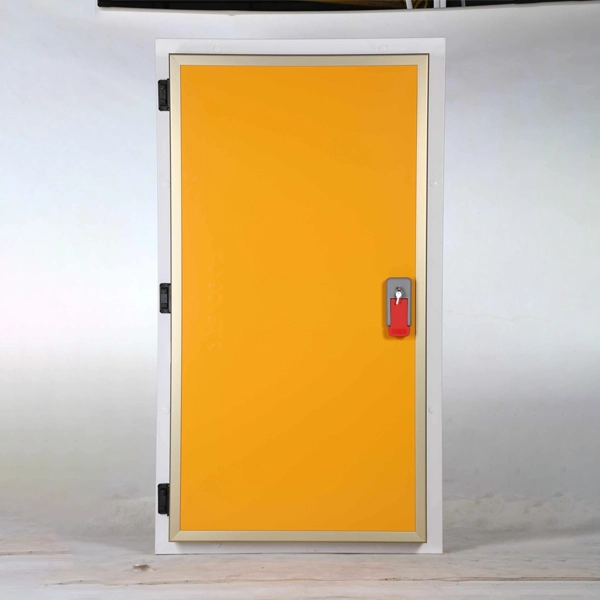

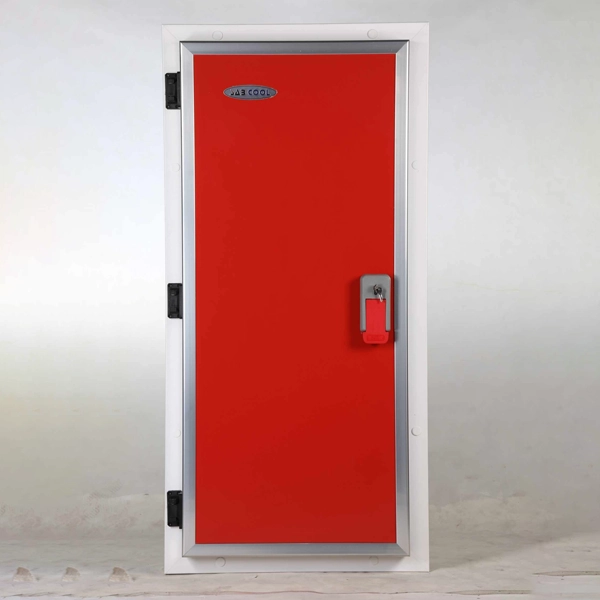

Hinged Cold Room Door

A hinged cold room door is a critical component of any cold storage system, ensuring that the internal environment remains stable and energy-efficient. These doors are engineered with advanced materials and insulation technologies to prevent heat exchange and maintain the desired temperature inside the cold room.

Key features of hinged cold room doors include:

1. Material Construction:
   • Typically made from stainless steel , aluminum , or cold-resistant plastic , these materials are chosen for their ability to resist heat transfer and air infiltration.
2. Thermal Insulation:
   • Equipped with high-performance insulation materials such as polyurethane foam or polystyrene foam , these doors effectively block heat flow and maintain internal temperatures.
3. Sealing System:
   • Designed to be fully airtight and leak-proof, hinged cold room doors feature robust sealing systems to minimize air and temperature leakage.
4. Locking and Opening Mechanism:
   • Equipped with secure locking systems and smooth opening mechanisms, these doors ensure safety and ease of use without damaging the cold room’s interior walls.
5. Durability and Resistance:
   • Built to withstand physical stress, mechanical wear, and temperature fluctuations, ensuring long-term performance in demanding environments.

Hinged cold room doors are available in various types and sizes to suit different cold room requirements and applications.

Technical Specifications of scorefrigeration’s Hinged Doors

• Door Thickness: Available in 70 mm, 100 mm, and 150 mm options.
• Design Options: Can be manufactured with or without hinges (heel).
• Insulation Material: High-density polyurethane foam with a density of 40 kg/m³ .
• Outer Coating: Pre-painted galvanized steel sheets with PVC film coating in colors such as white, red, yellow, and blue, or stainless steel panels.
• Dual-Layer Gasket: Features a two-part gasket design with no physical deformation, ensuring a perfect seal.
• Corner Gaskets: Special corner gaskets for seamless connections.
• Reinforced UPVC Frame: Provides excellent thermal insulation, durability, corrosion resistance, and UV protection.
• Hardware: Made from stainless steel and fiber-reinforced polyamide for maximum strength and longevity.
• Special Lock: Equipped with a lock that can be opened from inside the cold room for added safety.
• Optional Features:
  • Sight Glass: For visibility into the cold room.
  • Anodized Aluminum Frame: For enhanced durability.
  • Heating Elements: To prevent icing in sub-zero environments.
  • PVC Curtains: To minimize cold air loss during door openings.
  • Door Guards: To protect against damage from impacts.
• Warranty: 18 months from the date of delivery.

7 Key Points to Consider Before Purchasing a Hinged Cold Room Door

1. Material Quality:
   • Ensure the door is made from durable materials like stainless steel or aluminum, which can withstand cold and humid conditions.
2. Insulation Performance:
   • The door must have effective insulation to prevent heat infiltration and maintain internal temperatures.
3. Closing Mechanism:
   • A reliable closing system is essential to ensure the door seals tightly and prevents air leaks.
4. Safety Features:
   • Look for doors with secure locking systems and additional safety mechanisms to prevent unauthorized access.
5. Dimensions and Compatibility:
   • Choose a door size that fits your cold room structure and operates smoothly.
6. Compliance with Standards:
   • Ensure the product meets relevant safety, hygiene, and industry standards.
7. Maintenance and Repair:
   • Opt for doors with easily accessible and replaceable components for hassle-free maintenance.

Consult with experts to ensure your chosen door meets all your cold room requirements.

4 Factors Affecting the Price of Hinged Cold Room Doors

1. Door Dimensions:
   • Larger and thicker doors tend to cost more due to increased material usage.
2. Material Type:
   • High-quality materials like stainless steel or advanced composites increase the price.
3. Safety Features:
   • Additional safety mechanisms, such as special locks or motion sensors, can raise the cost.
4. Customization:
   • Custom-designed doors tailored to specific needs may have higher costs compared to standard models.

For accurate pricing, contact our technical consultants to discuss your specific requirements.

7 Important Applications of Hinged Cold Room Doors

1. Food Industry:
   • Used for storing perishable items like fresh produce, dairy products, meat, seafood, fruits, and vegetables.
2. Pharmaceuticals:
   • Ideal for storing medicines, vaccines, and other temperature-sensitive products.
3. Chemical Industry:
   • Suitable for preserving chemicals, raw materials, and chemical products.
4. Livestock and Poultry:
   • Used for storing meat, poultry, fish, and other protein-based products.
5. Freezer and Refrigeration:
   • Perfect for maintaining frozen goods like ice, ice cream, beverages, dairy products, and frozen fruits.
6. Logistics and Warehousing:
   • Essential for cold storage facilities in logistics and warehousing operations.
7. Agriculture:
   • Used for preserving agricultural products like vegetables, fruits, and pest control products.

Types of Hinged Cold Room Doors

1. Single-Hinge Doors:
   • The most common type, opening in one direction.
2. Double-Hinge Doors:
   • Feature two separate hinges, allowing them to open in both directions.
3. Sliding Doors:
   • Move horizontally along a rail, ideal for space-saving applications.
4. Bullet Doors:
   • Circular-shaped doors suitable for small cold rooms or limited spaces.
5. Rotating Doors:
   • Designed for high-traffic areas, providing efficient access.
6. Pneumatic Doors:
   • Automated doors powered by pneumatic systems for convenience.

Advantages of Hinged Cold Room Doors

• Cost-Effective: Generally more affordable than other types of cold room doors.
• Variety: Available in multiple designs to suit different preferences and needs.
• Easy Installation: Simple installation process requiring minimal expertise.
• Convenient Access: Provides easy access to the cold room’s interior.

Disadvantages of Hinged Cold Room Doors

• Cold Air Loss: Some cold air escapes during door openings.
• Space Requirements: Requires additional space for opening and closing.

Why Choose scorefrigeration’s Hinged Cold Room Doors?

• Expertise: Over 45 years of experience in designing and manufacturing cold storage solutions.
• Customization: Tailored solutions to meet your unique requirements.
• Energy Efficiency: Advanced insulation and sealing technologies to reduce energy consumption.
• Reliable Support: Comprehensive after-sales service and technical support.

For a consultation or to discuss your custom cold room door needs, contact scorefrigeration today!
